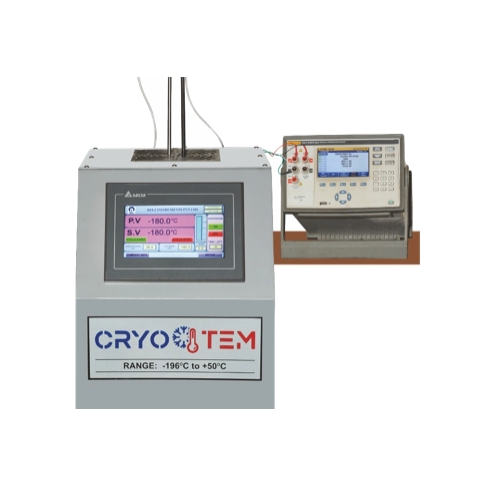

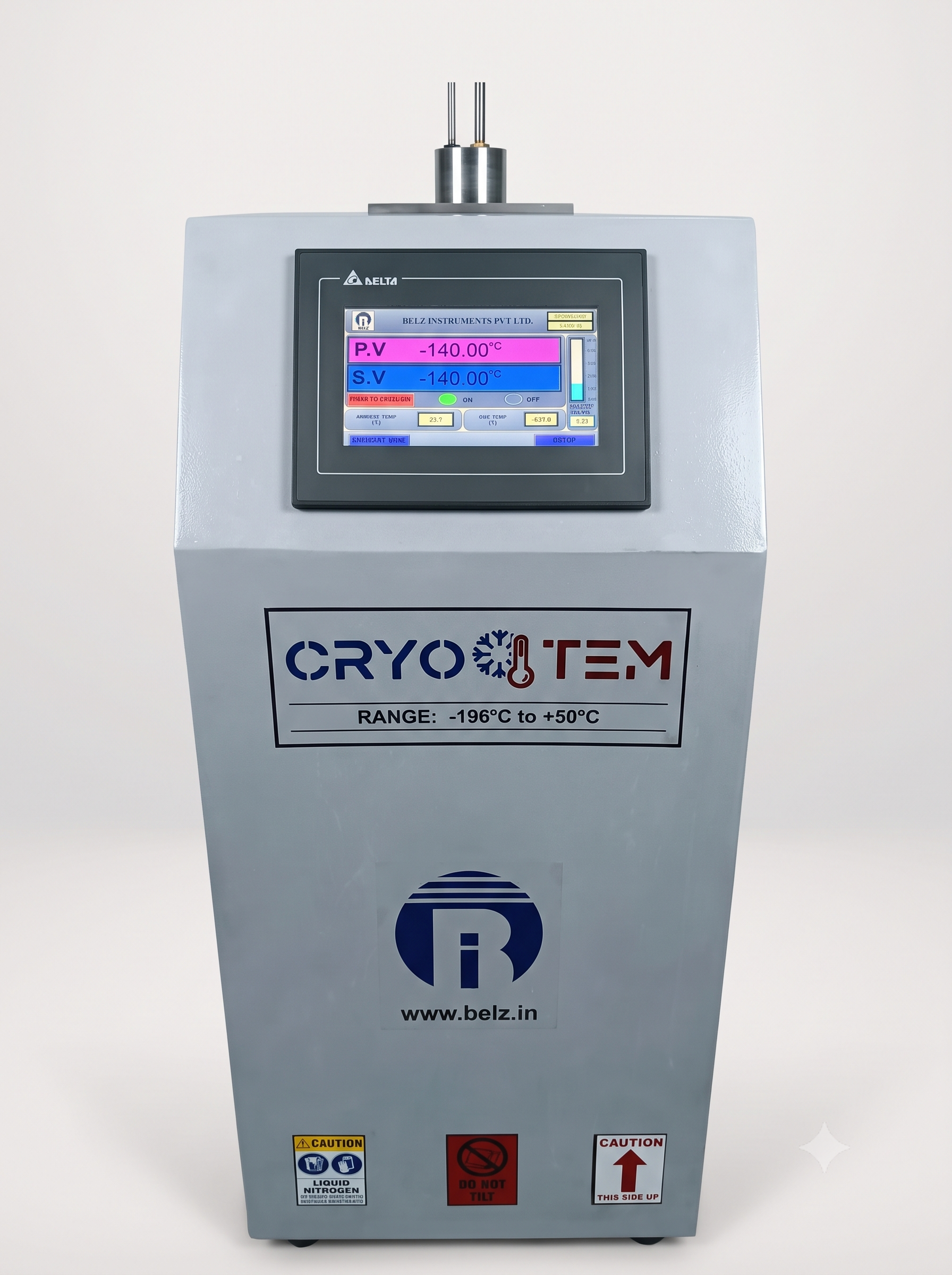

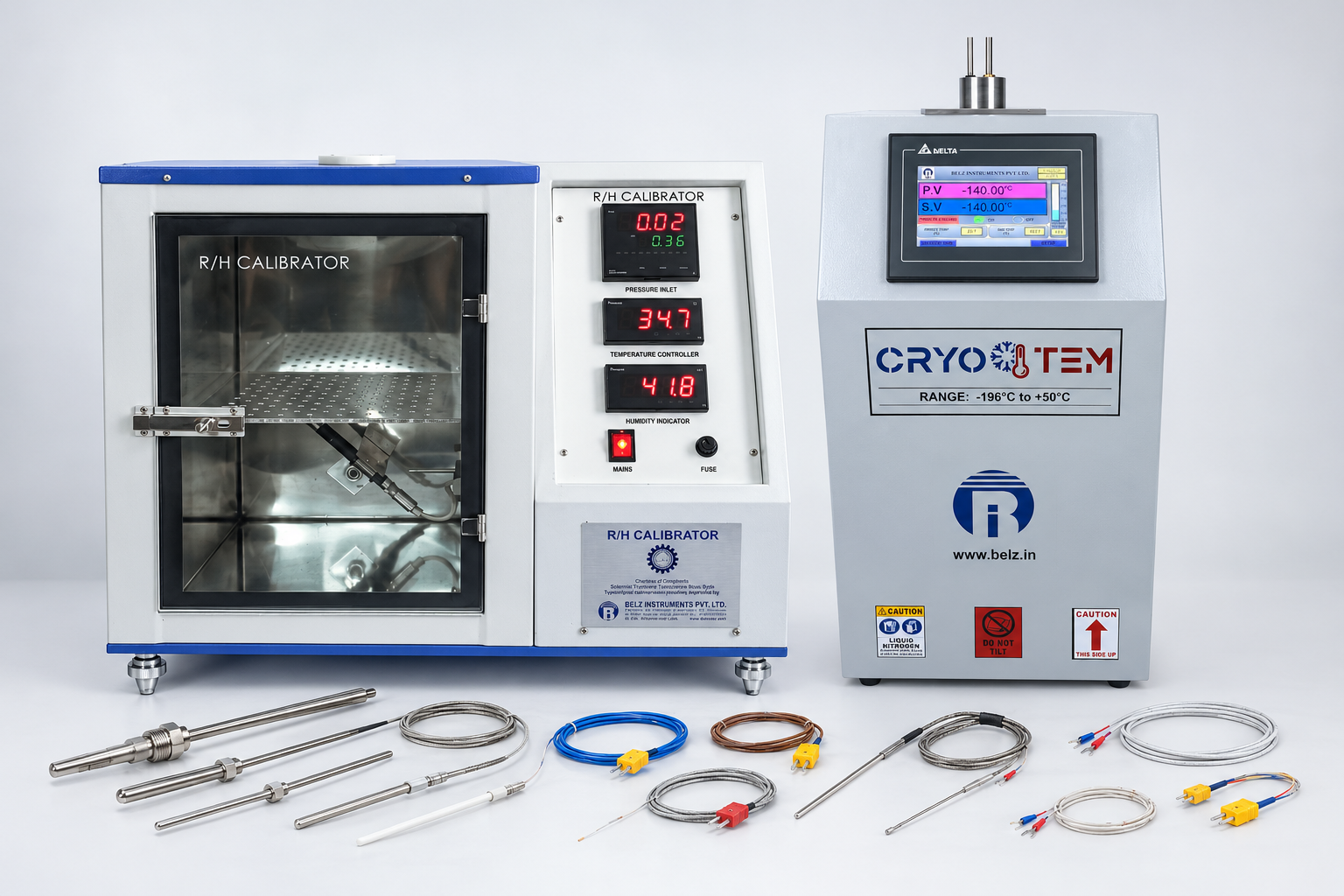

Ultra low temperature bath that uses liquid nitrogen (LN2) as the cooling medium to provide a continuous, stable temperature from -196°C to +50°C at a significantly lower cost. Developed by Belz after more than a decade of R&D for the comparison calibration of temperature sensors, including the range of -196°C to -100°C, for which no commercial source is otherwise available. Stability ±0.025°C (more than 30 minutes) and axial uniformity ±0.025°C (within 50 mm in the isothermal zone).
Temperature Range-196°C to +50°C
Temperature Set Point-196°C, -180°C to +50°C
Cooling MediumLiquid Nitrogen (LN2)
Liquid Nitrogen Consumption3 Liters excluding top-up (after soaking) to cover 5 set points over the range -196°C to +50°C
Stability (30 Minutes)±0.025°C
Axial Uniformity (within 50 mm of Isothermal Zone)±0.025°C
Minimum Sensor Length (DUC)350 mm
Immersion Depth (in isothermal block)>200 mm
Temperature Sensor Size (Dia)1 mm to 10 mm (Customizable)
Data LoggingUSB Port (for Back up)
Display on HMISet Value, Process Value, Ambient Temp, Real Time clock, LN2 Level indicator, DUC Temperature sensor indicator
Input Supply220 V AC ±10%, 50 Hz; 110 V AC ±10%, 60 Hz (Optional)
Power Consumption<200 Wh
Dimension & WeightH: 800 mm, L: 350 mm, W: 400 mm, Wt: 38 Kg (approx)
Advantages of CRYOTEM
- Dry Block — Sensor under calibration is isolated from the cooling medium, to avoid contamination of the sensor. Hence it is suitable for pharmaceutical, food and beverages, aviation and energy industries.
- Immersion Depth (200 mm) precision — Ensures 20 to 30 times immersion depth; sensors of diameter up to 8 mm can be calibrated without any immersion error.
- Sensor Length (350 mm) — Sensors of length 350 mm and above can be calibrated with a stability and uniformity of ±0.01°C. Shorter sensors up to 200 mm can also be calibrated with coarser stability and uniformity.
- Power Consumption — Less than 200 Wh, can be operated on an uninterrupted power supply conveniently.
- Environment Friendly — Uses environment-friendly liquid nitrogen (LN2), which is safe, non-toxic and odourless, for cooling instead of a refrigeration system that releases potent greenhouse gases (GHGs).
- Waste Recycling — Liquid nitrogen (LN2) is produced as a waste / by-product in oxygen production plants and is available in bulk at a very low cost. Using liquid nitrogen as the cooling medium is thus a waste-recycling process and also helps in reducing the carbon footprint.
- Ultra Low Temperature Source — A single system can handle all of your calibration requirements in the range -196°C to +50°C, avoiding the procurement, handling, maintenance and calibration time of multiple sources to cover this range.
Download CRYOTEM leaflet (PDF)
